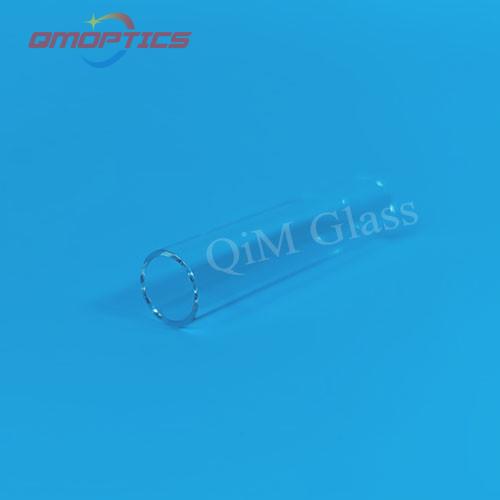

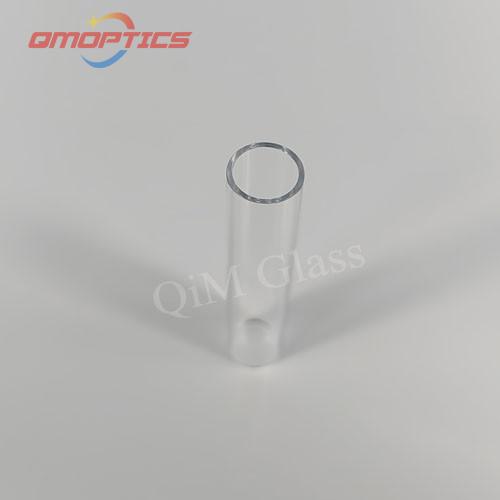

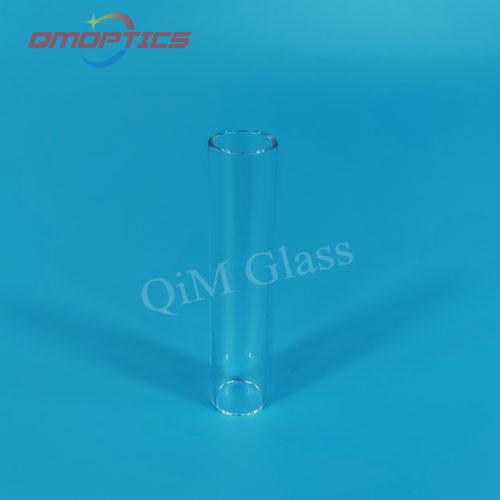

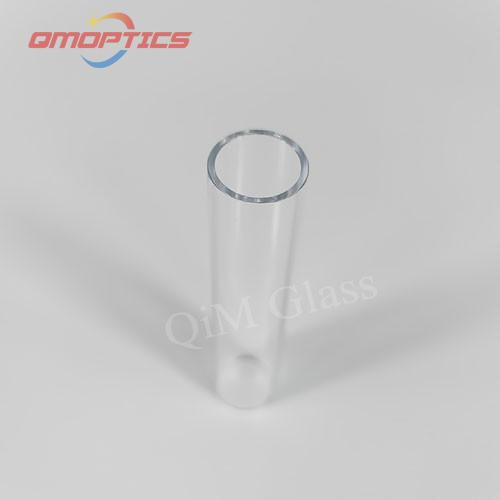

Ce Doped Quartz Tubes for Flash Lamp

Product Item : QiM50-005
Category： Laser Flow Tubes & Flow Plates
Material: Ce-Doped Quartz Glass
Dimension: Standard or Customized
Function: UV filtering
Application: Laser excitation lamp / IPL
INQUIRY EMAIL

Ce-Doped Quartz Flow tubes UV Filter Tubes
Cerium Doped Quartz is a clear fused quartz doped with cerium oxide. Cerium-doped quartz tubes excel in applications that require precise control over ultraviolet (UV) light. By embedding cerium ions within the quartz structure, these tubes significantly improve UV blocking capabilities. This feature is crucial for systems such as UV curing processes, phototherapy equipment, and UV sterilization systems, ensuring optimal performance and protection against UV exposure.

Product Features:
Material: Ce-Doped Quartz Glass
Dimension: Standard or Customized
Tolerance: ±0.1mm, ±0.05mm or higher
Surface: smooth
Color: Transparent
Length: Cut to length
End: Fire polish

Product application
- laser excitation lamp
- IPL (intense pulsed lamp)
- Solid laser light pump
- Solid laser filter
- The other laser light source material

Material Properties
Mechanical properties

Density（g/cm3）	2.2
Pressive strength (N/mm2)	1100
Buckling strength	67
Tensile strength	48
Micro strength	8600-9800
Mohs hardness	5.5-6.5

Thermal properties

Coefficient of thermal expansion	5.5*10^-7/℃
Thermal conductivity（w/m℃，20℃）	1.4
Specific heat	670
Soft point(viscosity 108Pa.S)	1680℃
Softening point (viscosity 1013Pa.S)	1215℃
Strain temperature (long time heat retaining)	1200℃
Long time operating temperature	1100℃
Short time operating temperature	1300℃
