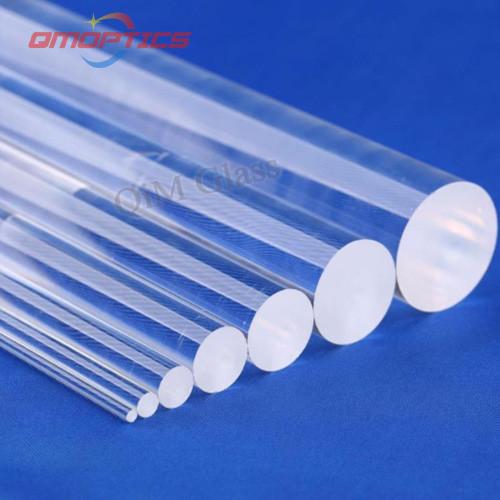

Custom Size Quartz Glass Capillary Rods
The quartz glass capillary rod is drawn from high purity silica glass, with high precision and shape. The surface is smooth and transparent, dimension is uniform, it is widely used in high power laser, optical communications and fiber manufacturing industry.
Customization Of Quartz Capillary Rods Is Available:
Parameters
|
Value
|
Dimension
|
Diameter 0.5mm～Specified Dimension
|
Tolerance
|
0.01mm
|
Length
|
1-1500mm or specified Length
|
Surface
|
Transparent or frost
|
Shape
|
Round, square, rectangular, triangular, oval, half round, D-shape, C-shape, grooved etc.
|
Material
|
Quartz Glass, Fused Silica, Corning 7980,
Corning 7979, Borosilicate Glass, Opaque Quartz, Glass with or without
lead, other required material.
|
Applications:
High purity Quartz Glass Capillary Rods with its optical, physical, mechanical, electrical, and other outstanding features, are widely used in optical fiber and communication industry such as PLC Splitter, Wavelength Division Multiplexer (WDM), Fiber Optic Sensor (FOS), Fiber Optic Sensors, Optical Fiber Communication Systems and other optical fiber transmission facilities. Quartz Capillary Rod is the essential component and required material of the Gas Chromatographs, High Performance Capillary Electrophoresis Chromatograph (HPCE), High Performance Liquid Chromatograph (HPLC) and Micro fluidics instruments in Electronic, Medical Treatment, and Optical industry.
We can custom produce precision drawn glass tubes and rods. In past years, we have successfully developed primary and secondary drawing production processes based on different glass capillaries requirements. The glass materials we can process are silica glass, quartz glass, borosilicate glass, Cerium Doped Quartz glass, Samarium doped glass, lead-free or lead containing glass, and other glass materials. We have a wide range of diameters of precision finished tubes and rods, manufactured with tight tolerances. Except the normal round tubes and rods, we can provide non-circular tubes and rods, like square, rectangular, triangle, half round, with singles hole, double holes, triple holes or more holes on cross section. Precision is well controlled according to customer’s requirement.
Welcome to contact us for more details!
