Custom Dual Hole Quartz Tubes for High Frequency Furnace

Custom Dual Hole Quartz Tubes for High Frequency Furnace

Product Item : QiM60-022
Category： Quartz Glass tubes
Material: High purity quartz glass
Shape: Dual hole
Surface: Transparent
Application: High Frequency Furnace
INQUIRY EMAIL

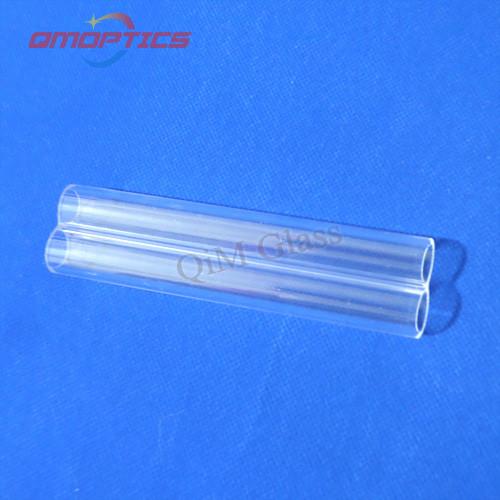

Custom Dual Hole Quartz Tubes for High Frequency Furnace
The dual hole quartz tube is made of high purity silica glass, and formed by high-temperature drawing. It has the characteristics of good dimensional consistency, high precision, and good transparency. Combined with excellent material properties such as high temperature resistance and corrosion resistance, it is often used for high temperature high frequency furnace.

Custom Twin Hole Quartz tubes for Tubular Furnace

The mechanical properties of quartz glass
Density:	2.2g/cm³
Compressive strength:	1100Mpa
Bending strength:	67Mpa
Tensile strength:	48Mpa
Mohs hardness:	5.5-6.5
Thermal properties of quartz glass
Deformation point:	1120℃
Softening point:	1680℃
Thermal expansion coefficient:	5.5x10-7cm/cm.℃
Short term usage temperature:	1300℃
Long term use temperature:	1100℃
Electrical properties of quartz glass
Resistivity:	7x107Ω.cm
Insulation strength:	250-400Kv/cm
Dielectric constant Ɛ:	3.7-3.9
Dielectric absorption coefficient:	<4x10⁴
Dielectric loss coefficient:	<1x10⁴

Advantages of Fused Quartz Tubing:
1. High temperature resistance: Quartz tubes have excellent high temperature resistance and can work for a long time at temperatures close to 1200 degrees Celsius, maintaining stable performance.
2. Corrosion resistance: Quartz tubes have high corrosion resistance and can withstand the erosion of many corrosive substances, with a long service life.
3. Good Transparency: Quartz tubes have excellent transparency and can transmit most of the light, making it easy to observe the inside of the tube.
4. High strength: Quartz tubes have high strength, are not easily deformed or broken, and can withstand significant pressure.
5. Good chemical properties: Quartz tubes have excellent chemical stability and are not easily reacted with other chemicals, making them suitable for various environments.
6. Easy to process: Quartz tubes are easy to cut, polish, and shape, and can be processed as needed.
7. High purity: The material used to make quartz tubes is usually high-purity quartz stone, which is free of impurities and meets the requirements for use.

Tags: Custom Dual Hole Quartz Tubes for High Frequency Furnace
