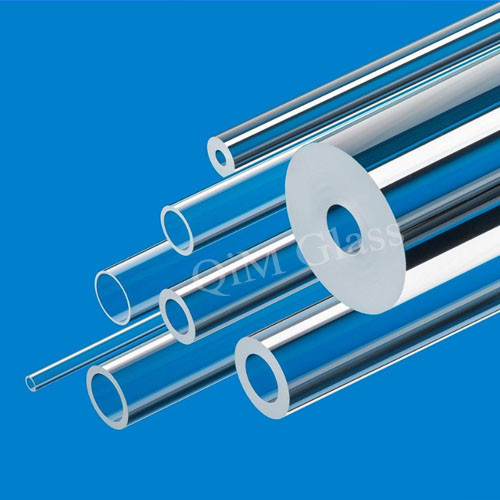

Fluorine-Doped Fused Silica Capillary Tubes

Product Item : QiM30-001
Category： Fluorine-Doped Fused Silica Capillary Tubes
Material: Fluorine-Doped Fused Silic
Dimension: Standard and custom
Advantages:High concentration of fluorine
Application: Medium to high power beam combiners & Photon lanterns
INQUIRY EMAIL

Fluorine-Doped Fused Silica Capillary Tubes

Fluorine-doped quartz tube is a special quartz tube product especially designed for laser fiber application. The series of fluorine-doped quartz tubes are prepared by chemical vapor deposition process inside the tube with the advantages of high fluorine concentration, low hydroxyl content & good geometric uniformity. These series of products are widely used as a laser fiber pump cladding material.

Product features:
Good size uniformity
Good optical performance
Good temperature resistance performance
Flexible profile and precise control

Advantages:
High concentration of fluorine
Good geometric uniformity
Low hydroxyl content

Product application:
Medium to high power beam combiners
Photon lanterns

Product Structure

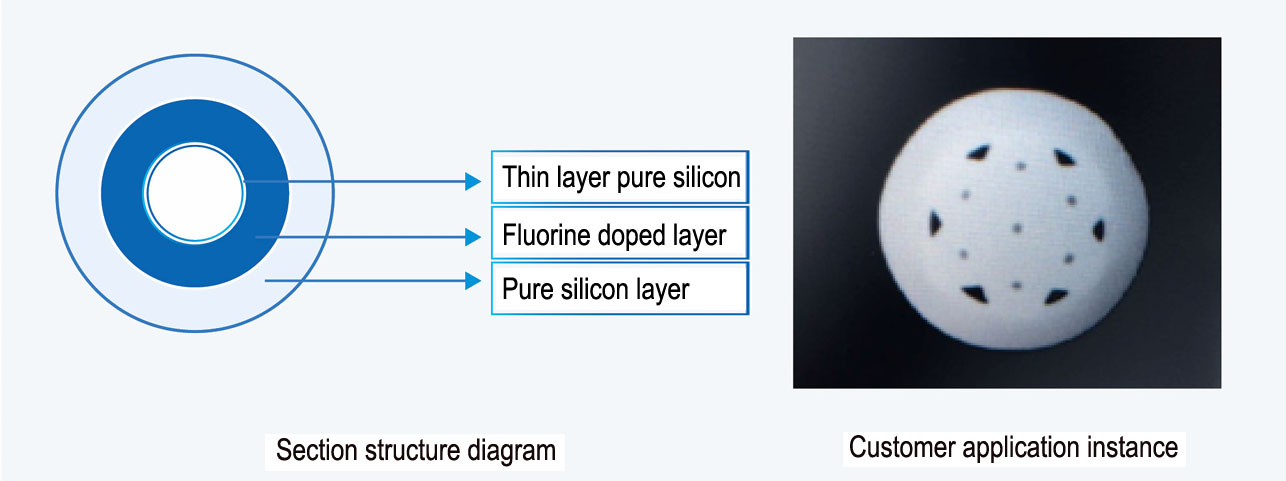

Structure of Fluorine-Doped Fused Silica Capillary Tubes

Structure of Fluorine-Doped Fused Silica Capillary Tubes

Product Parameters
Tolerance of OD & ID: 0.05mm
Length: 150±0.3mm
Na Value: 0.22
Material: F-doped SiO2
The ratio of outer diameter to inner diameter of fluorine doped layer >1.1

Dimension Types:

Types	Outer Diameter	Inner Diameter	Length
QIM30-F001	0.75mm	0.4mm	150mm
QIM30-F002	0.95mm	0.75mm	150mm
QIM30-F003	1.1mm	0.85mm	150mm
QIM30-F004	1.2mm	0.96mm	150mm
QIM30-F005	1.5mm	0.8mm	150mm
QIM30-F006	1.5mm	1.2mm	150mm
QIM30-F007	1.7mm	1.2mm	150mm

Customization Information
Fluorine-doped tube can be customized with the aperture from 0 to 0.22.
Fluoride-doped capillary drawing services can be available.
