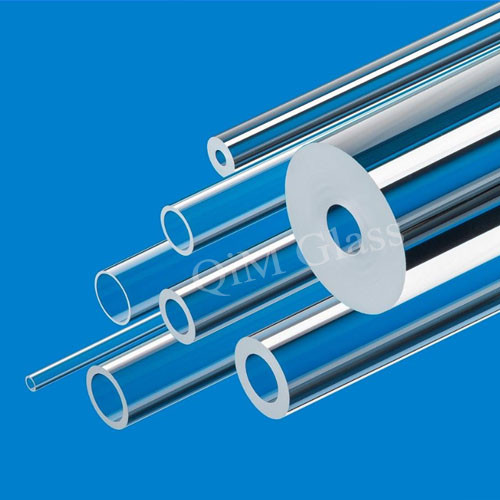

Fluorine-doped Quartz Tubes OD950um ID750um

Product Item : QiM30-003
Category： Fluorine-Doped Fused Silica Capillary Tubes
Material: Fluorine-Doped Fused Silic
Dimension: Standard and custom
Advantages:High concentration of fluorine
Application: Medium to high power beam combiners & Photon lanterns
INQUIRY EMAIL

Fluorine-doped Quartz Tubes OD950um ID750um

Fluorine-doped quartz tube is a special quartz tube product especially designed for laser fiber application. The series of fluorine-doped quartz tubes are prepared by chemical vapor deposition process inside the tube with the advantages of high fluorine concentration, low hydroxyl content & good geometric uniformity. These series of products are widely used as a laser fiber pump cladding material.

Product features:
Good size uniformity
Good optical performance
Good temperature resistance performance
Flexible profile and precise control

Advantages:
High concentration of fluorine
Good geometric uniformity
Low hydroxyl content

Product application:
Medium to high power beam combiners
Photon lanterns

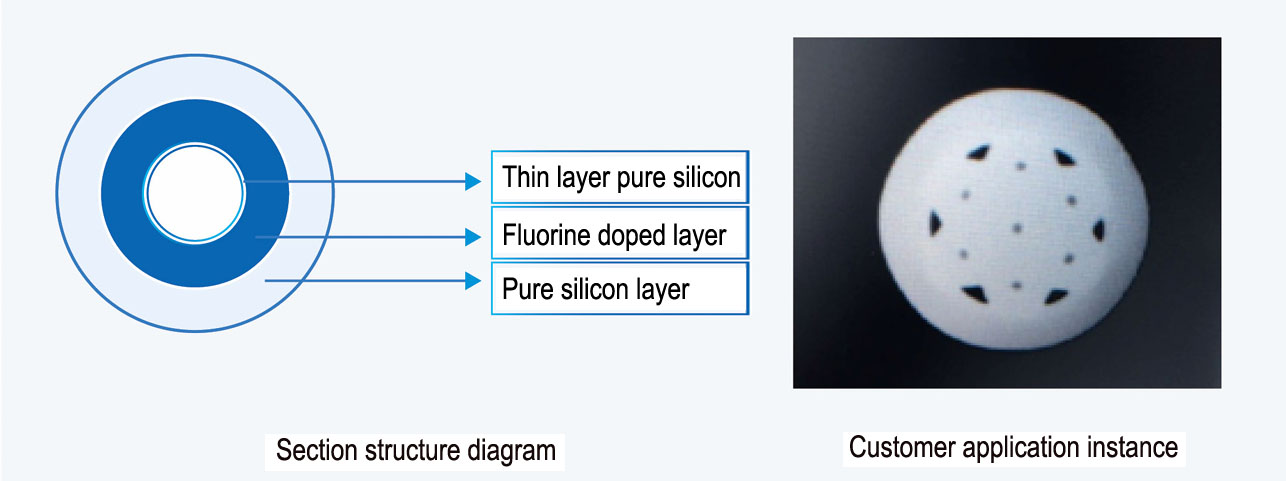

Product Structure
Fluorine-doped Quartz Tubes OD950um ID750um

Product Parameters
Tolerance of OD & ID: 0.05mm
Length: 150±0.3mm
Na Value: 0.22
Material: F-doped SiO2
The ratio of outer diameter to inner diameter of fluorine doped layer >1.1

Customization Information
Fluorine-doped tube can be customized with the aperture from 0 to 0.22.
Fluoride-doped capillary drawing services can be available.
