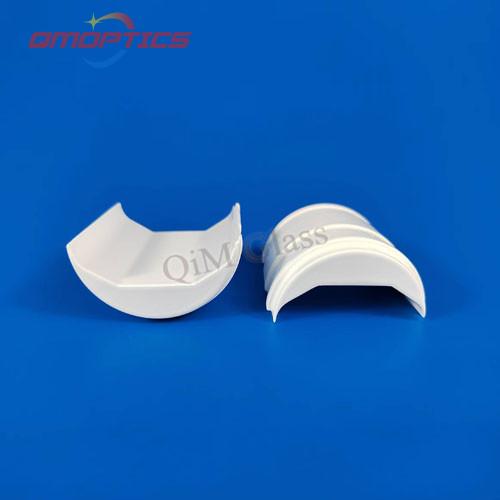

Two-piece Ceramic Laser Reflectors For Laser Head

Product Item : QiM53-003
Category： Ceramic Laser Reflectors
Material: Alumina ceramic
Purity: 99%
Surface: Glazed
Structure: Two-piece System
INQUIRY EMAIL

Two-piece Ceramic Laser Reflectors For Laser Head

This two-piece system ceramic laser reflector is in high dimension accuracy, with good fitting each other.

Product Parameters
Product Name: Ceramic Laser Reflectors
Structure: Two-piece System
Color: White
Material: Alumina ceramic
Purity: 99%
Surface: Glazed
Density: 3.1g/cm3
Porosity: 22%
Bending strength: 170MPa
Tolerance: 0.5mm

Product Features
1) Fully glazed surface for maximum reflectivity and easy cleaning
2) Reflectivity reaches 97% at wavelengths of 600-1000nm
3) Reflectivity exceeding 95% within the wavelength range of 380-1100nm
4) The green body has appropriate porosity and high strength characteristics
5) The diffuse reflectance scatters light and consequently reduces hot spots in the pumped medium.
