U Grooved Glass Substrates For Fiber Optic

  • Product Item : QiM20-016
  • Category: Micro Glass Rods
  • Material: Fused quartz
  • Diameter: 1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
  • Tolerance of the diameter: ±0.03mm
  • Stock: Available
  • INQUIRY   EMAIL

U Grooved Glass Substrates For Fiber Optic

U Grooved Glass Substrates are used for fiber support or alignment, or isolating fiber with the package. It is made from fused quartz, drawn in high precision, and cut with specified length. We custom produce various dimensions of U Grooved Glass Substrates and V Grooved Glass Substrates with specified tolerance. Welcome to contact us for more details.

Product Parameter

Product Name
U grooved glass substrates
Material
Fused quartz
Purity
99.99%
Diameter
1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
Tolerance of the diameter
±0.03mm
Angle of the opening
15-38°
Tolerance of the angle
±5°
Length
5-100mm
Tolerance of the length
±0.2mm
Surface
Transparent or frost
Stock
Available

U Grooved Glass Substrates For Fiber Optic


U Grooved Glass Substrates For Fiber Optic

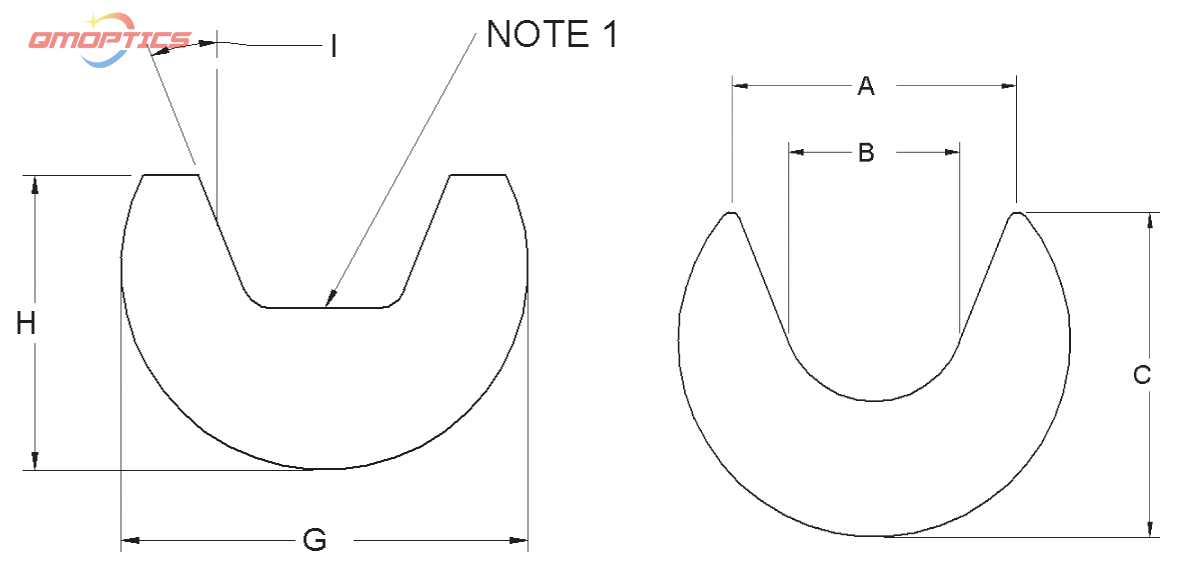

A=Maximum Width of Groove ± Tolerance
B=Minimum Width of Groove ± Tolerance
C=Overall Diameter ± Tolerance
D=Length of Piece ± Tolerance
E=Depth of Groove ±Tolerance
F=Distance between Bottom of Groove
G=Major Axis of Outer Piece ± Tolerance
H=Minor Axis of Outer Piece ± Tolerance
I=Angle Specifications (max./min)
NOTE 1:Specify shape requirements such as full radiused, parallel sides, right angle sides, tapered, etc.
Also include:
- Glass Type
- Concentricity Specifications
- Ground and/or Polished Surfaces

INQUIRY
