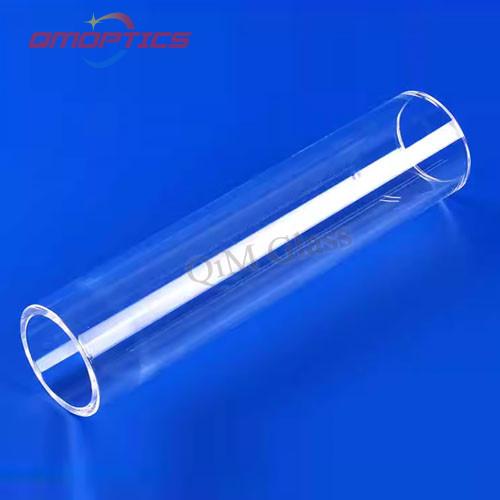

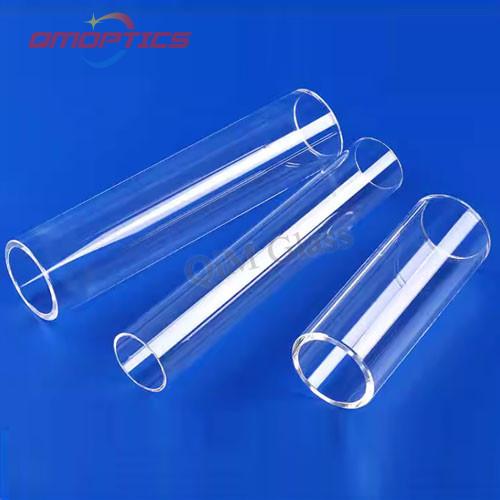

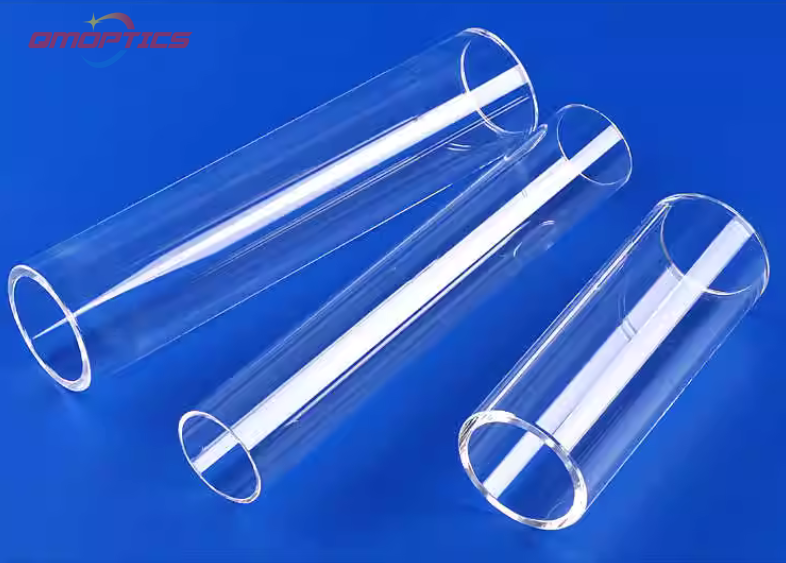

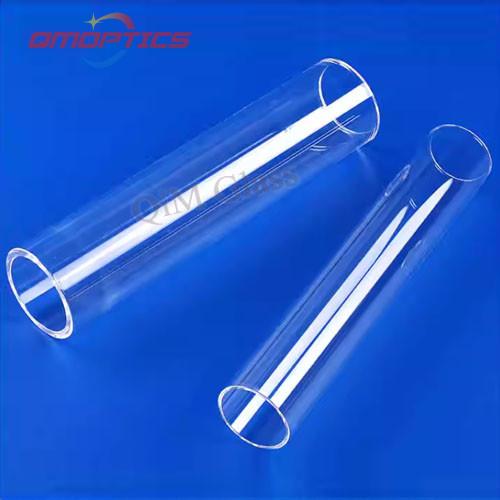

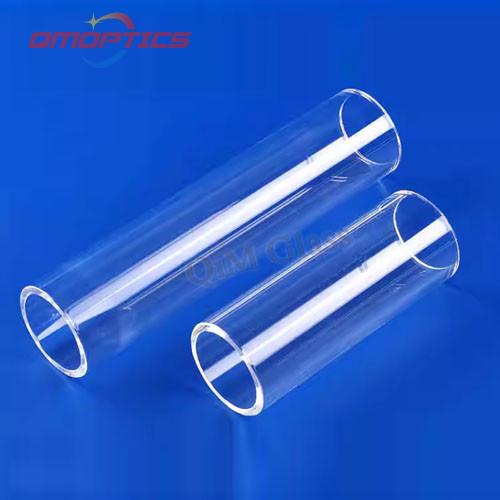

Ultra Transparent Fused Quartz Tubing

Product Item : QiM60-002
Category： Quartz Glass tubes
Material: High purity quartz glass
Dimension: Standard or Customized
Process: Thermal drawing
Minimum Order Quantity: Negotiable
INQUIRY EMAIL

Ultra Transparent Fused Quartz Tubing
Fused Quartz Tubing is a special industrial technology glass made of high-purity silicon dioxide. It is widely used in various fields such as electric light sources, semiconductors, optical communication, military industry, metallurgy, building materials, chemistry, machinery, power, environmental protection, etc. When selecting quartz tubes, it is necessary to consider their advantages and disadvantages comprehensively based on specific usage conditions and requirements, and choose suitable pipe materials. During use, attention should also be paid to maintenance and upkeep to avoid unnecessary damage and waste.

Advantages of Fused Quartz Tubing

1. High temperature resistance: Quartz tubes have excellent high temperature resistance and can work for a long time at temperatures close to 1200 degrees Celsius, maintaining stable performance.
2. Corrosion resistance: Quartz tubes have high corrosion resistance and can withstand the erosion of many corrosive substances, with a long service life.
3. Good Transparency: Quartz tubes have excellent transparency and can transmit most of the light, making it easy to observe the inside of the tube.
4. High strength: Quartz tubes have high strength, are not easily deformed or broken, and can withstand significant pressure.
5. Good chemical properties: Quartz tubes have excellent chemical stability and are not easily reacted with other chemicals, making them suitable for various environments.
6. Easy to process: Quartz tubes are easy to cut, polish, and shape, and can be processed as needed.
7. High purity: The material used to make quartz tubes is usually high-purity quartz stone, which is free of impurities and meets the requirements for use.

Precautions for Using Fused Quartz Tubing
1. Quartz glass products are valuable materials, so we must handle them with care when using them;
2. Quartz glass that requires high temperature use must be wiped clean before use. It can be soaked in 10% hydrofluoric acid or washing solution, and then cleaned with high-purity water or treated with alcohol. Wear thin gloves during operation and do not touch quartz glass directly with your hands;
3. Although quartz glass material has high thermal stability, it can withstand drastic temperature changes. However, in actual use, due to the residual strain and different product shape, there are certain differences in thermal stability, which should be taken into account during use;
4. Quartz glass is an acidic material. When used at high temperatures, it should be strictly avoided to come into contact with alkaline substances, otherwise its anti crystallization performance will be greatly reduced.
