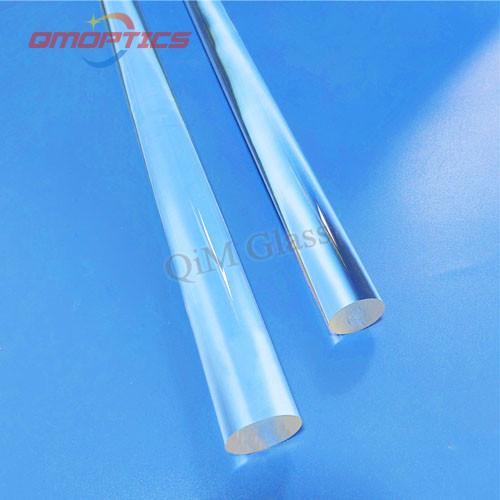

High Purity Fused Silica Rods for Production of Optical Fiber Core or Cladding

  • Product Item : QiM70-006
  • Category： Quartz Glass rods
  • Material: High Purity Fused Silica
  • Dimension: Standard or Customized
  • OH content: below 1ppm
  • Application: Production of Optical Fiber Core or Cladding
  • INQUIRY   EMAIL
High Purity Fused Silica Rods for Production of Optical Fiber Core or Cladding
Fused silica tubes and rods are used in key steps of optical fiber production. Chemical Vapor deposition (CVD) processes rely on high purity and precise geometrical properties of tubes to produce excellent core rods. F300 material with a specified OH content below 1 ppm is the ideal material in the fiber optic community.
This product is a fuly-synthetically fused material and is fabricated using the unique process assuring highest quality from the raw material to the final tube. The product has the characteristics of low bubble content, high geometries accuracy and excellent appearance, which is especially used for the special optical fiber.
High Purity Fused Silica Rods for Production of Optical Fiber Core or Cladding

Product Specification

Outside Diameter Range (mm)
 Ovality
 Bow (mm)
 Length (mm)
14-20
 ≤0.1
 ≤0.7
≤1700
20-30
 ≤0.1
 ≤0.7
 ≤1700
30-40
 ≤0.15
 ≤1
≤1700
40-60
 ≤0.4
≤0.8
 ≤1700
60-90
 ≤0.5
 ≤1
 ≤1700
90-120
 ≤0.5
 ≤1
≤1700
120-150
 ≤0.5
 ≤1
 ≤1700
Customized according to customer requirements.


Chemical Properties

Element
 Li
 Na
 K
Ca
 Mg
 Fe
 Cu
 Mn
 Al
 Ti
 Ni
 Co
 B
 Cr
Typical value (PPM)
 ﹤0.01
 0.01
 ﹤0.01
 0.03
 ﹤0.01
 0.05
 ﹤0.01
 ﹤0.01
 ﹤0.1
 ﹤0.1
 ﹤0.1
 ﹤0.1
 ﹤0.1
 ﹤0.1

Thermal Properties

Soft Point (Viscosity 108Pa.S)
 1620℃
Annealing point  (Viscosity 1013Pa.S)
 1150℃
Strain temperature (Long time heat retaining)
 1100℃
Long time operating temperature
 950℃
Short time operating temperature
1200℃
