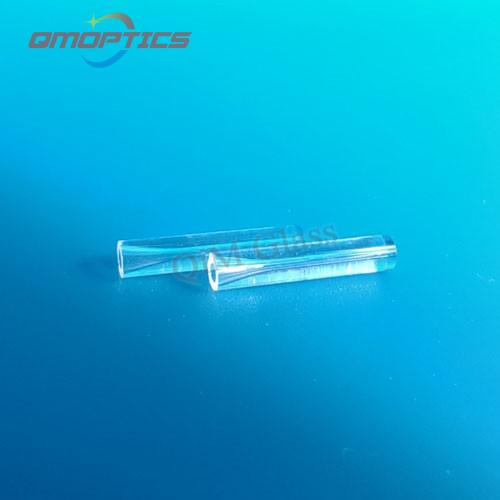

Quartz Capillary Tubes for Optical Fiber ID 0.125mm 0.126mm 0.127mm

Quartz Capillary Tubes for Optical Fiber ID 0.125mm 0.126mm 0.127mm

Product Item : QiM10-028
Category： Micro Glass Tubes
Material: High purity quartz glass
Purity: 99.99%
Surface: Polished /Transparent
Application: Optical communications
INQUIRY EMAIL

Quartz Capillary Tubes for Optical Fiber ID 0.125mm 0.126mm 0.127mm
The quartz glass capillary for optical fiber has an inner hole which allows an optical fiber to be inserted and retained therein. Ra value of the surface roughness of the inner hole is 0.1 μm to 0.5μm. The ferrule for optical connector is provided with a chamfered part on one end of the capillary for optical fiber for guiding it into a sleeve and a flared part on the other end of the capillary for optical fiber for guiding the optical fiber into the inner hole.
Quartz Capillary Tubes for Optical Fiber ID 0.125mm 0.126mm 0.127mm

Product Parameters

Material	Quartz glass
Silicon Content	99.99%
Outer diameter	0.2-3mm
Inner diameter	0.125mm, 0.126mm, 0.127mm etc.
Length	5-20mm
Surface	Smooth
Color	Transparent
Cone	Optional
Process	Thermal drawn
Application	Optical communications
